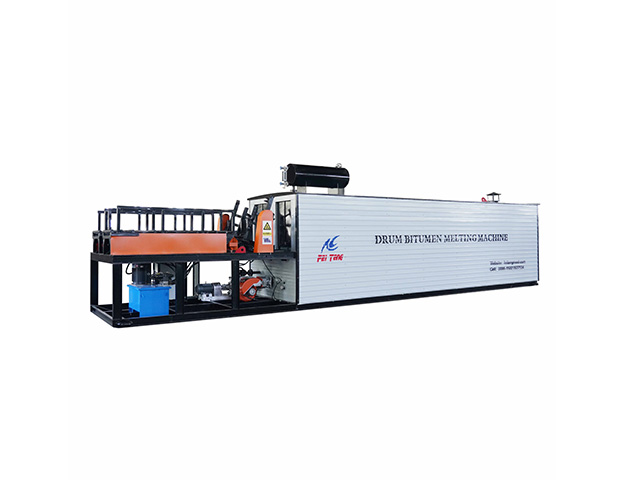

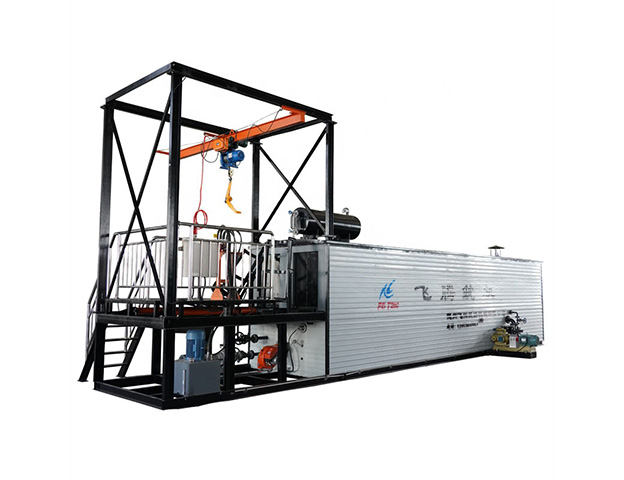

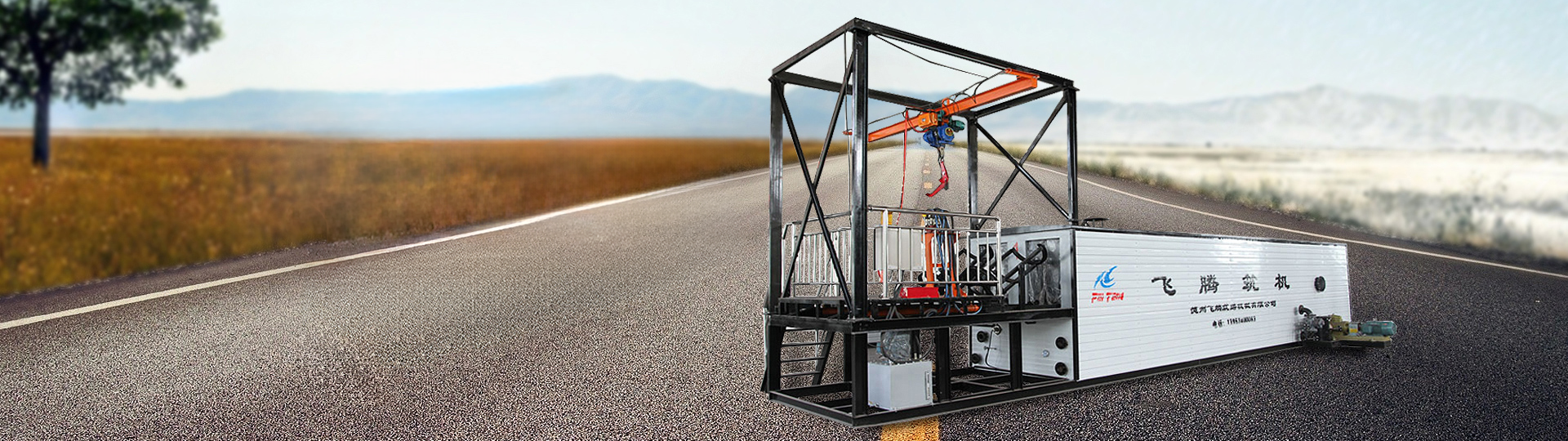

The ​ZYDST series automatic bitumen melting machine​ is a high-performance, eco-friendly solution for liquefying solid bitumen in drums. Featuring a ​diesel burner (Italy Baltur)​, ​thermal oil heating, and ​automatic drum tipping, it ensures fast melting, minimal residue (≤0.3%), and reduced labor costs.

• ​Model Range ZYDST-5, ZYDST-10, ZYDST-15
• Production Rate 4-6 t/h, 8-10 t/h, 10-15 t/h
• Bitumen Reservoir Capacity 9 m³, 14 m³, 20 m³
• ​Drum Quantity per Batch 18-22, 28-32, 42-48
• ​Heating Method Direct (Fuel/Gas) + Indirect (Thermal Oil)
• ​Burner Brand Italy Baltur (120-850 KW)
• ​Thermal Efficiency ≥90%

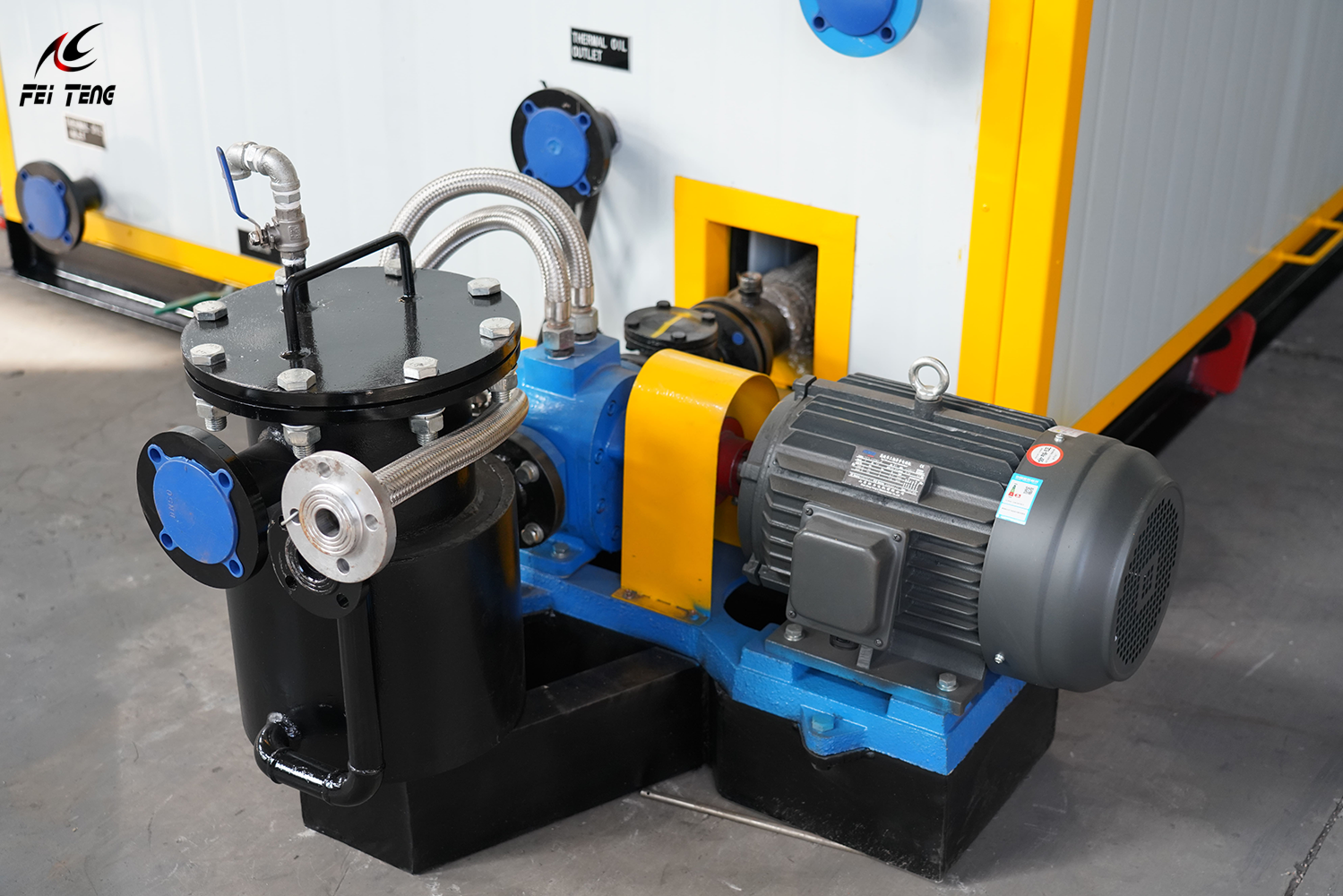

• Bitumen Pump Brand ShangGui (3GN Series)
• ​Bitumen Temperature 110-140°C
• Residue Removal Rate ≤0.3% per drum
• ​Electrical Components Schneider
• ​Adaptation to Drum Size 500-580 mm

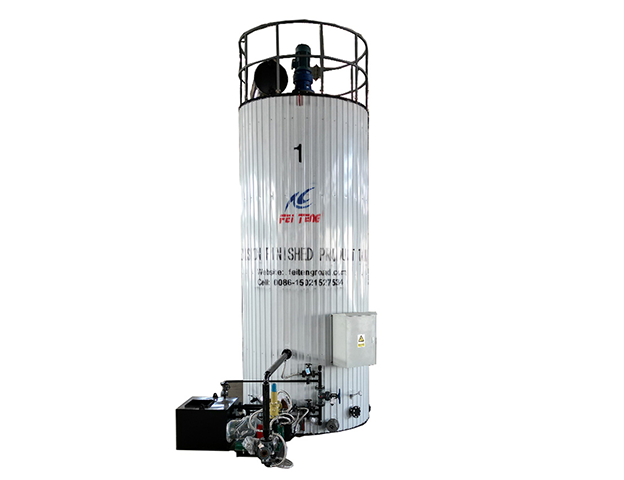

FEITENG vertical asphalt tanks combine advanced thermal oil heating, automatic temperature control, and high-torque mixing systems for efficient asphalt storage and processing. Designed with 5mm Q235 steel and Schneider electrical components, these tanks ensure durability and precise temperature management (60-200℃). Ideal for large-scale road projects requiring stable asphalt viscosity and energy-saving operation.

• ​Product Name FEITENG Vertical Asphalt Heating & Storage Tank
• ​Model RLC-19 / RLC-18 / Customizable Vertical Type
• ​Capacity 19,000L (RLC-19) / 18m³ (RLC-18) / 30m³ (Custom)
• ​Heating Technology Thermal Oil Circulation System + Electric Heating Tubes (45kW)
• ​Temperature Range Bitumen: 60-140℃ (adjustable) / Thermal Oil: 150-240℃
• ​Power Supply 380V/50Hz 3-phase AC; Total Power: 11-62.2kW
• Material 5mm Q235 Steel Tank Body; Stainless Steel Sensors & Valves
• ​Certifications ISO, EAC; 1-Year Warranty
• ​Applications Bitumen Storage, Heating, Mixing for Road Construction, Highway Engineering

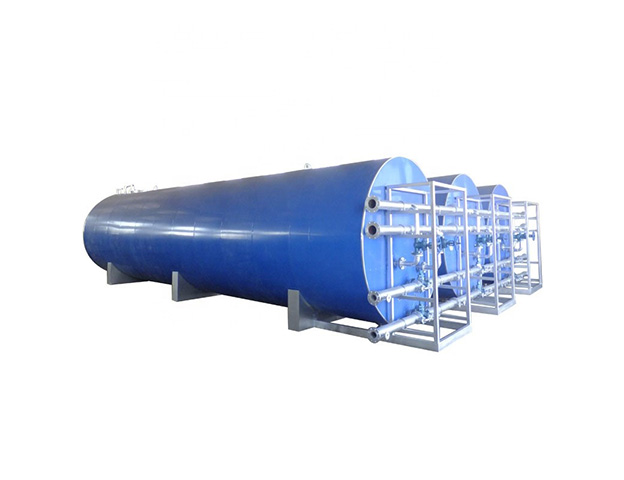

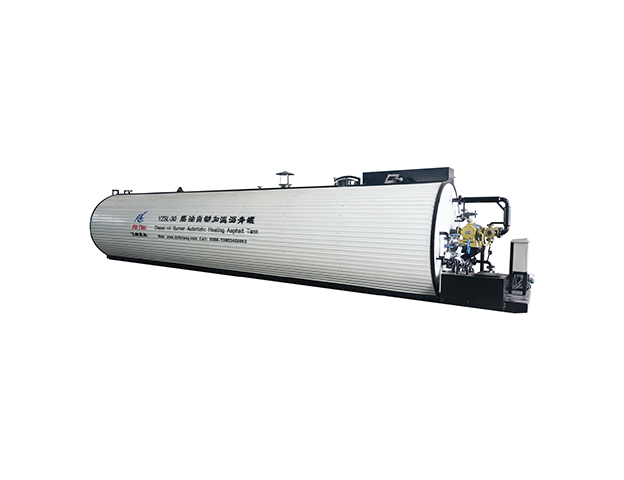

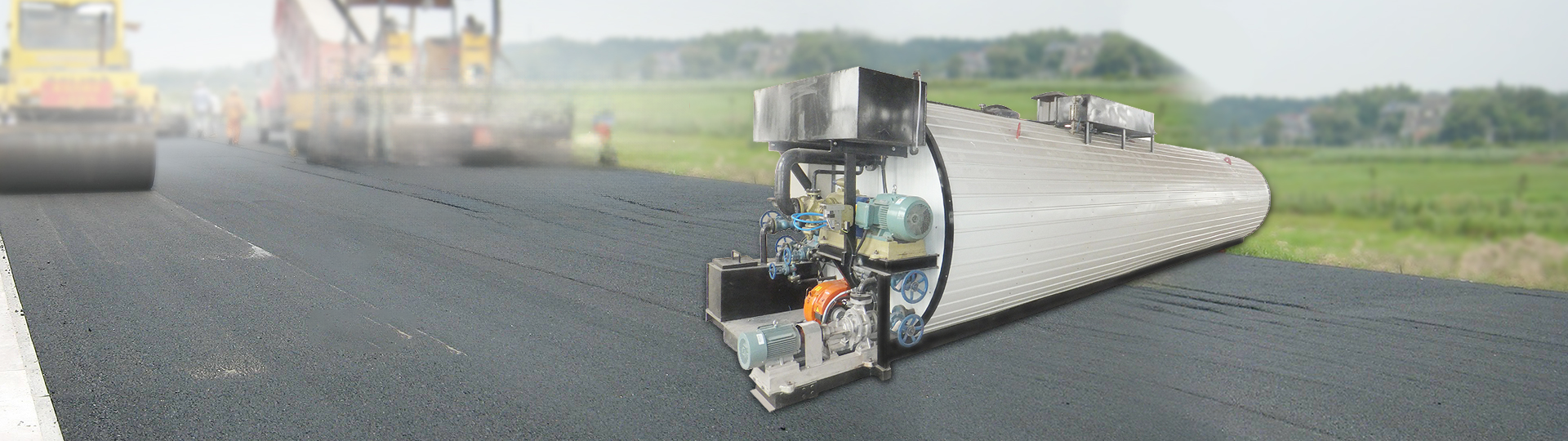

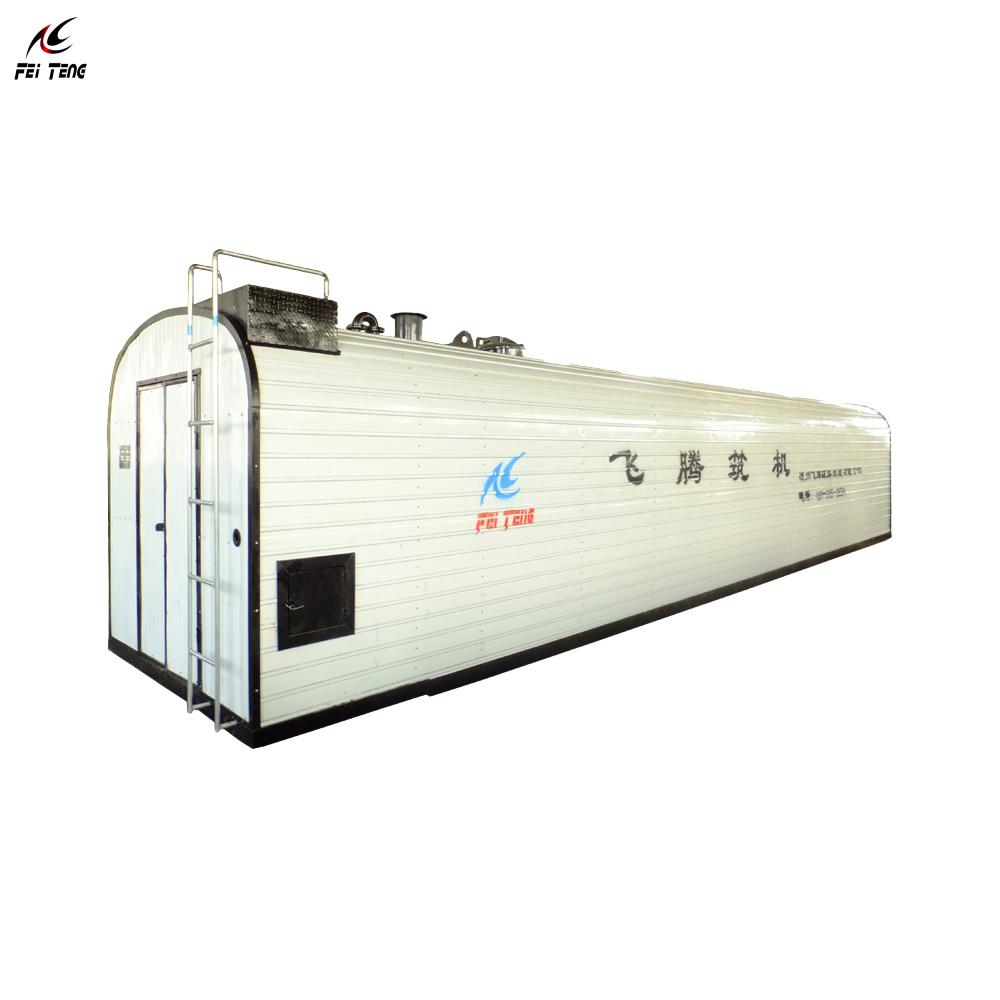

The FEITENG YDL Series Diesel Oil Burner Double Heating Bitumen Storage Tank is a revolutionary integration of bitumen tank and thermal oil boiler, delivering rapid heating, precise temperature control, energy efficiency, and environmental responsibility. Ideal for asphalt production, emulsion bitumen processing, and modified bitumen plants.

• Product Model YDL-35
• Brand FEITENG
• Capacity 35 m³
• Dimensions Diameter 2.25m × Length 12m
• Tank Material Carbon Steel / Stainless Steel (Optional)
• Shape Horizontal Cylinder
• Heating Method Diesel Direct Heating + Thermal Oil Indirect Heating
• Burner Brand Riello (Italy) / Baltur (Optional)
• Heating Speed 10-15°C/hour (at 25°C ambient temperature)
• Maximum Bitumen Temperature 180-200°C
• Thermal Oil Working Temperature 200-250°C
• Bitumen Pump Flow Rate 16.8-25 m³/h (depending on configuration)
• Total Power Approximately 9-10 kW
• Power Requirements 380V 50Hz Three-phase AC
• Maximum Working Pressure 1.84 MPa
• Core Components Burner, Bitumen Pump, Thermal Oil Pump
• After-sales Service Free Spare Parts, Video Technical Support
• Certifications ISO, EAC

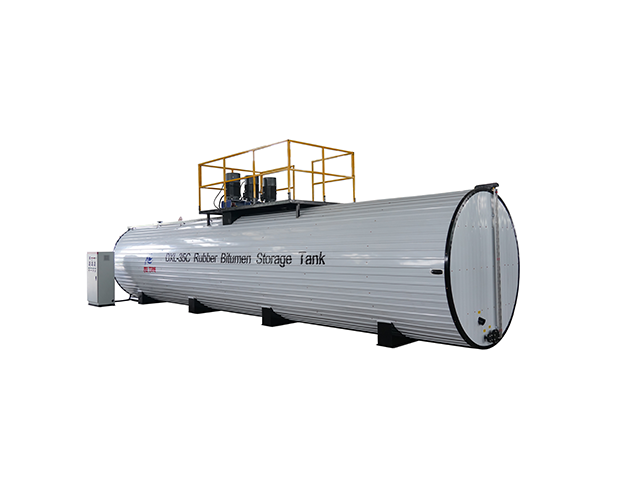

The DCL rubber and modified bitumen storage tank is a high-performance self-heating storage solution developed by Feiteng. It features dual heating systems, precise temperature control, and robust stirring capabilities. Ideal for storing SBS or rubber-modified asphalt in any project setting, especially where external thermal oil boilers are unavailable.

• Brand Name Feiteng
• Product Type Rubber and Modified Bitumen Storage Tank
• Heating System Diesel burner + Thermal oil coil (dual heating)
• Volume 28m³
• Power Supply 380V
• Temperature Control Automatic
• Heating Speed 20°C per hour
• Agitator 3 sets, frequency-controlled asphalt agitators
• Bitumen Pump YCB18/0.6, flow rate 18 m³/h, power 11 KW
• Emission Standard In line with environmental protection standards

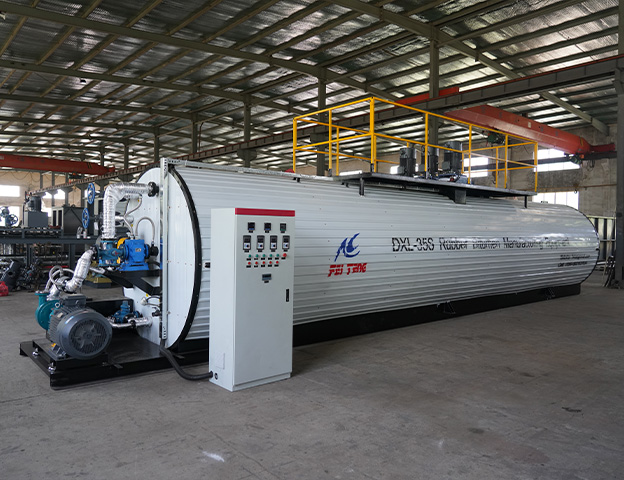

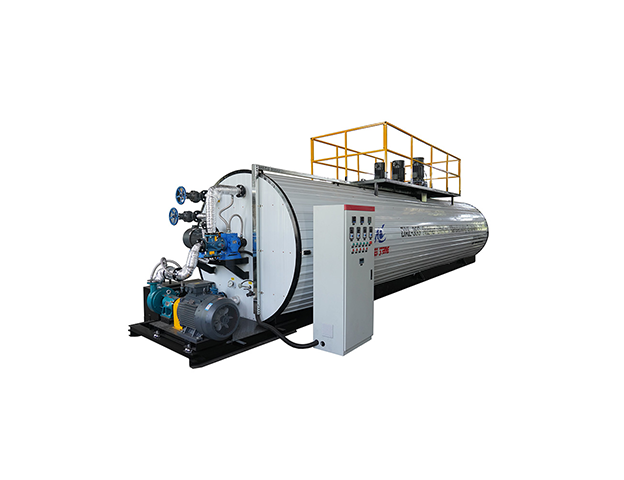

The DXL-28 rubber bitumen manufacturing equipment is a self-heating, multifunctional production tank developed by Feiteng to meet modern requirements for environmental protection, energy efficiency, and automation. It is ideal for the production, storage, and supply of SBS and rubber powder modified asphalt on sites without thermal oil boilers.

• Brand Name Feiteng
• Model DXL
• Origin Shandong, China
• Net Volume 28m³ / 30m³ (Optional)
• Output per Batch 20~23 tons
• Total Power 59KW ~ 81.5KW (Depending on Configuration)
• Voltage 380V
• Heating Method Diesel Burner + Thermal Oil Coil (Dual Heating System)
• Temperature Control Fully Automatic
• Heating Speed Approx. 20°C per hour
• Dimensions 12m (L) × 2.2m (W) × 2.55m (H)
• Core Components Burner, Agitators, Bitumen Pump, Weighing Sensors
• After-Sales Service Free spare parts, Online video technical support
• Warranty 1 Year for Core Components
• Application Industries Road Construction, Modified Asphalt Production

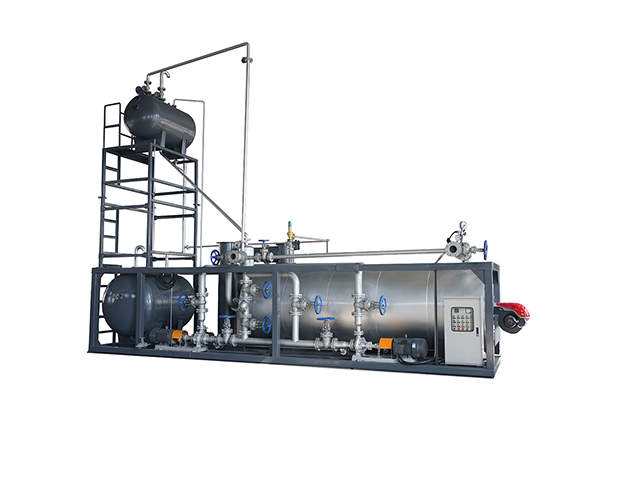

Feiteng's thermal oil boiler is an advanced industrial heating solution using organic heat-conducting oil and diesel oil burners. With exceptional energy efficiency, precise temperature control, and robust safety features, it's ideal for asphalt plants, construction projects, and industrial production lines.

• Product Name Organic Heat Carrier Thermal Oil Boiler
• Brand Name Feiteng
• Heat Output 1,200,000 - 1,600,000 Kcal/h
• Fuel Type Light Diesel Oil (Customizable: Gas, Electric, etc.)
• Burner Model RIELLO 190 / RL250
• Fuel Consumption 90–120 kg/h (Continuous Burning)
• Thermal Efficiency 70% - 85%
• Thermal Oil Capacity 3.5 Tons
• Pump Flow Rate 100–160 m³/h
• Main Body Size 5–5.43 m (L) × 2.2–2.3 m (W) × 2.35–2.65 m (H)
• Total Power 42–47 kW
• Power Supply 380V / 50Hz Stable AC
• Control System PLC Intelligent Control System with Auto Shutdown & Alarm
• Warranty 1 Year for Core Components
• After-sales Service Video Technical Support

The Feiteng DLT Series Bitumen Decanter is a burner-free, energy-efficient, and eco-friendly solution for melting and decanting barreled asphalt. It utilizes a high-performance thermal oil heating system and features automatic slag removal, continuous operation, and a fully enclosed design ideal for highway and infrastructure projects.

• Product Name DLT Series Bitumen Decanter (Without Burner)
• Models Available DLT-5 / DLT-10
• Production Capacity DLT-5: 4–6 TPH; DLT-10: 8–10 TPH
• Heating Type External thermal oil boiler, indirect radiation heating
• Barrel Compatibility Customizable for various drum sizes

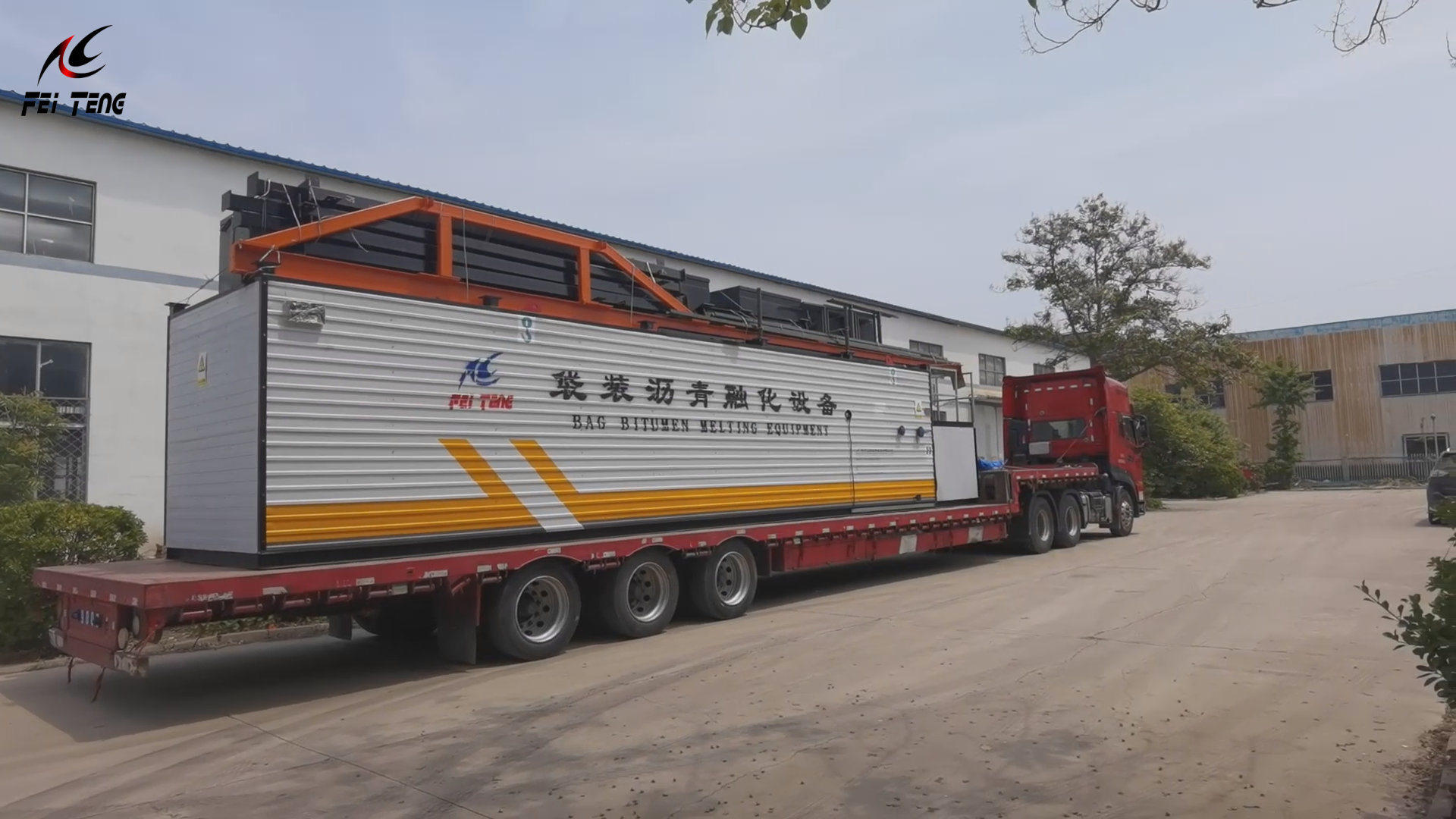

• Structure Modular, cuboid shape, container-loadable
• Material Q235B Carbon Steel with rock wool insulation
• Warranty 1 year from delivery
• Services Installation, training, online support, free spare parts
• Origin Dezhou, Shandong, China
• Certification EAC, ISO9001, ISO14001, OHSAS18001

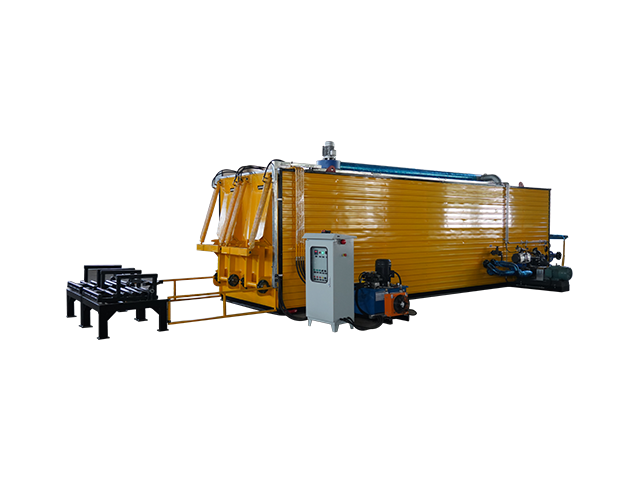

The FDLT Series Bitumen Drum Decanter is a modular, high-performance solution designed to melt and decant bitumen from barrels quickly and cleanly. Featuring thermal oil heating, automation, and high adaptability, it is ideal for road projects and bitumen plants.

• Series FDLT Series
• Capacity 8–10 tons/hour
• Heating Method Indirect thermal oil heating
• Residue Rate ≤ 0.2%
• Drum Size Compatibility Φ500–580 mm
• Total Installed Power 18 kW
• Bitumen Operating Temperature 110–140°C
• Thermal Oil Temp. 200–240°C
• Power Supply 380V, 50Hz, 3-phase
• Application Road construction, bitumen storage & heating
